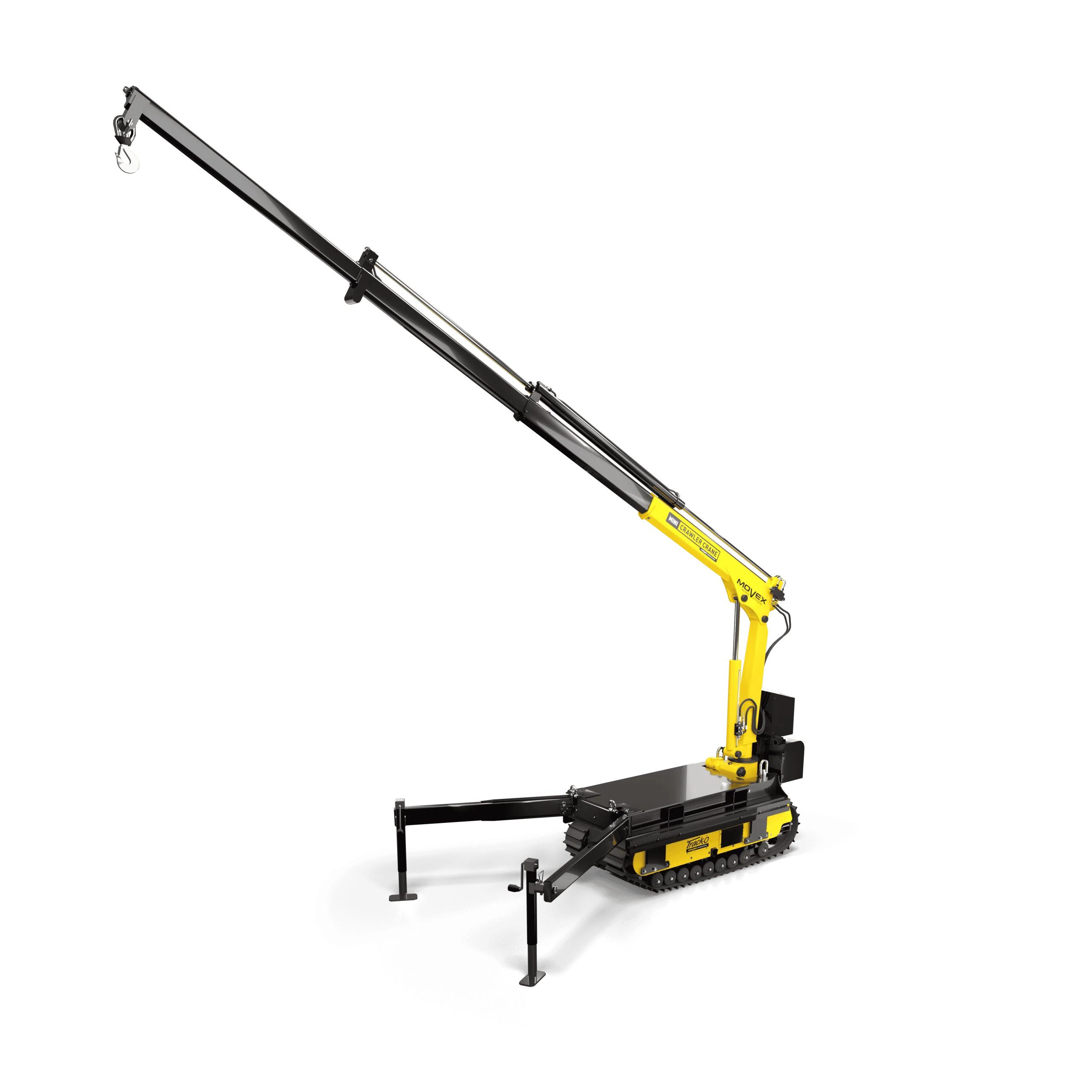

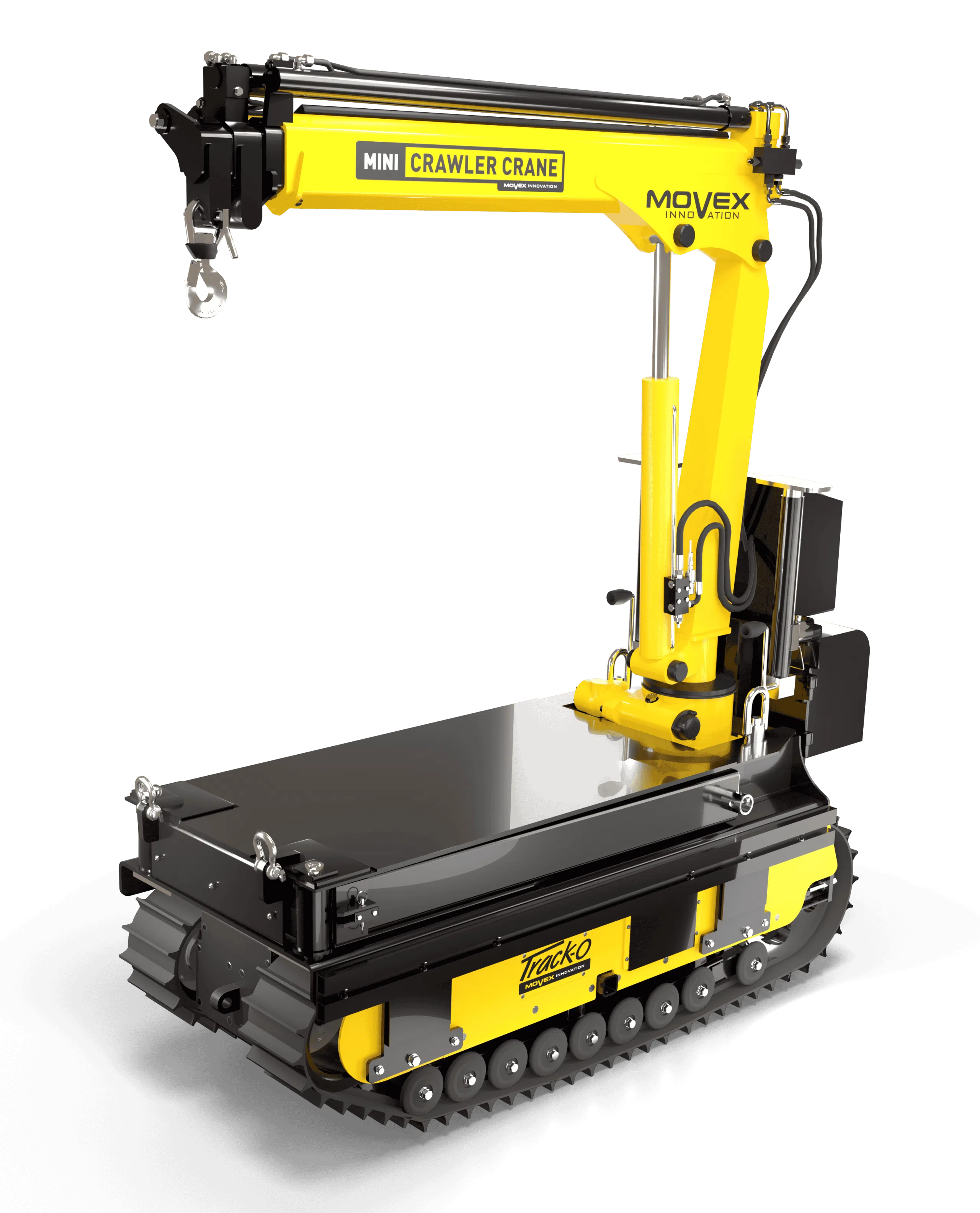

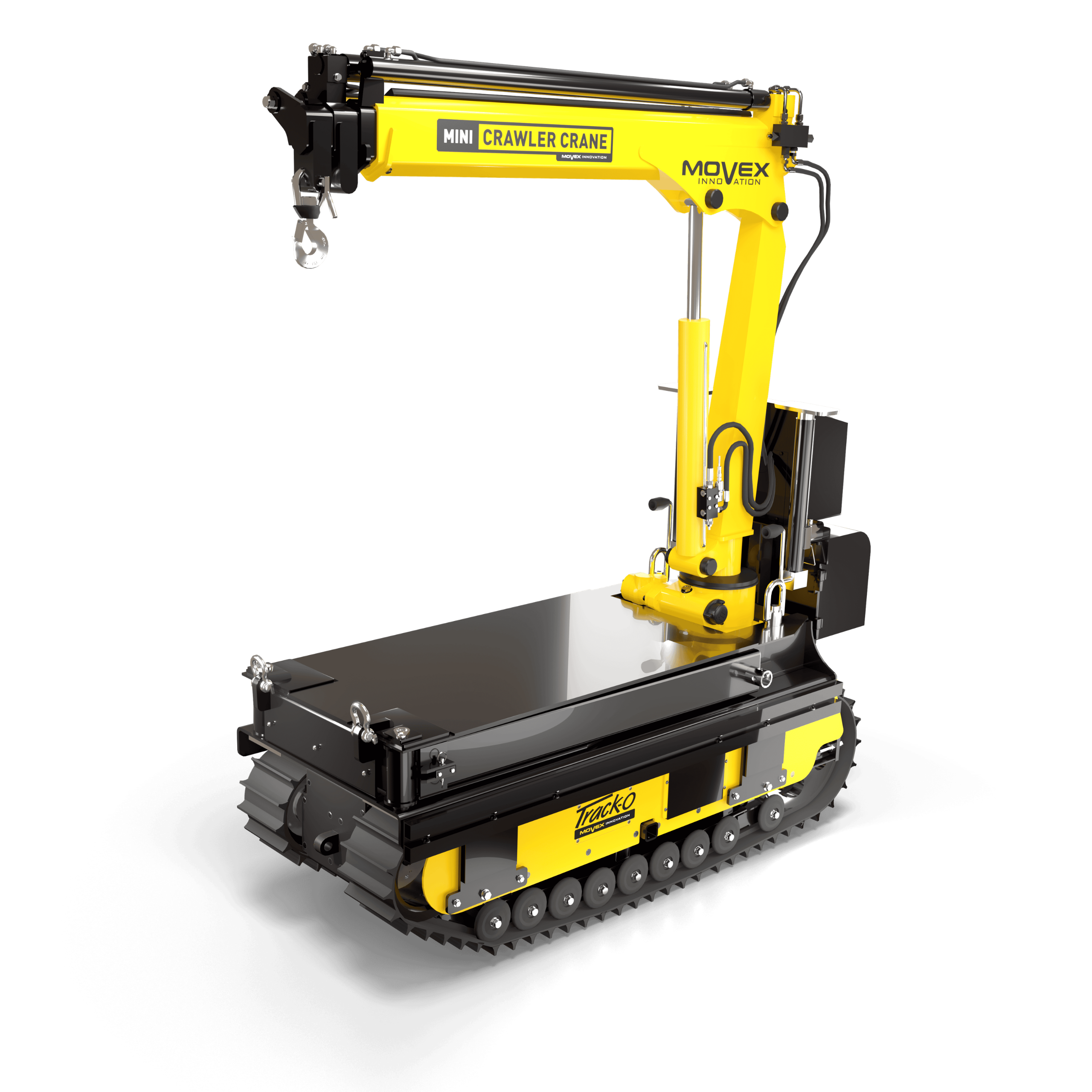

Mini Crawler Crane XC-270 | All-terrain carriers| Mini-Telescopic Crane

The XC-270 Cross-country mini crawler crane is an ultra-compact and versatile pick-and-carry equipment. With its electric-powered, zero-emission design, it offers efficient and cost-friendly operation. This crane is perfect for navigating tight spaces, carrying heavy loads, and enhancing safety on various job sites.

  • The most compact all-terrain pick and carry crane on the market
  • 2 in 1 equipment. The telescopic crane is mounted on a removable interface. It can be removed to use the XC-30 (all-terrain carrier) as a simple transporter.
  • Unique crane that can go in backyards, without damaging landscapes.
  • Electric / Zero emissions
  • Up to 210 feet per minute
  • Lift ring to be craned on the truck
  • Remote controlled
  • Automatic tilt alarm with speed reduction
  • Superior ground clearance on uneven, soft and slippery terrain

XC-270 Cross-country mini crawler crane highlights

Load capacity at 8.5 ft reach: 2200 lb Load capacity at 8.5 ft reach: 2200 lb
Load capacity at 16.5 ft reach: 1100 lb Load capacity at 16.5 ft reach: 1100 lb
Width: 30 <sup>1</sup>⁄<sub>2</sub> in Width: 30 12 in
Turning radius: 83 <sup>1</sup>⁄<sub>2</sub> in Turning radius: 83 12 in

Typical applications

Pad-mounted transformer transportation to backlots or in mechanical rooms
Move generators in confined spaces and backyards
Carry out plant maintenance in the mining sector
Transport structural beams, doors and glass for installation
Transport and installation of components, including pumps, motors, conveyor parts, etc. in factories

What if we could help streamline your operations and boost your team’s productivity?

Comparison chart

Imperial
Metric

Features

Battery Powered

Wireless remote-controlled

Zero-turn capability

Built-in charger

Motion and tilt Alarm

Advanced speed control

Automatic gradient/speed monitoring

Motor brake

Upgradable and configurable software

2-in-1 equipment (removable crane)

Lifting rings

Stair-climbing capability

-

All-terrain capability

Pick & Carry capability

-

-

Characteristics

Length

80 3/4 in

Width

30 1/2 in

Height

88 1/2 in

Weight

2875 lbs

Ground Clearance

9 in

Turning diameter

91 in

80 3/4 in

30 1/2 in

80 3/4 in

2470 lbs

2 1/8 in

91 in

Performance

Lifting capacity (At maximum reach)

1100 lbs at 16' 5''

Lifting capacity (In front of the equipment)

2090 lbs at 8' 9''

Lifting capacity (with optional manual extension)

770 lbs at 19' 8''

Max crane rotation

11°

Max payload on platform

2200 lbs

Max pitch angle (when moving the machine)

15°

Max roll angle (when moving the machine)

10°

Max speed (leveled surface)

200 ft/min

1100 lbs at 16' 5''

2200 lbs at 8' 2''

770 lbs at 19' 8''

11°

500 lbs

35°

N/A

200 ft/min

Options & Accessories

Portable winch

Manual extension 4ft

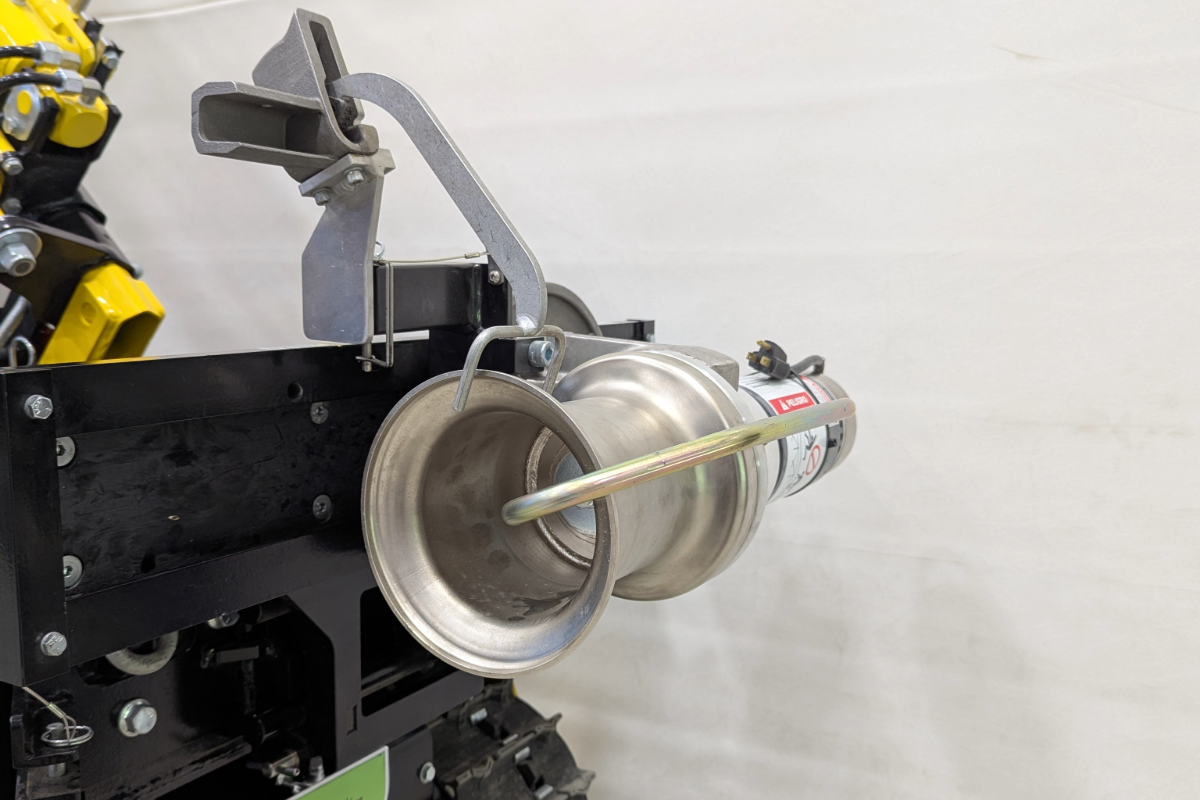

Capstan
