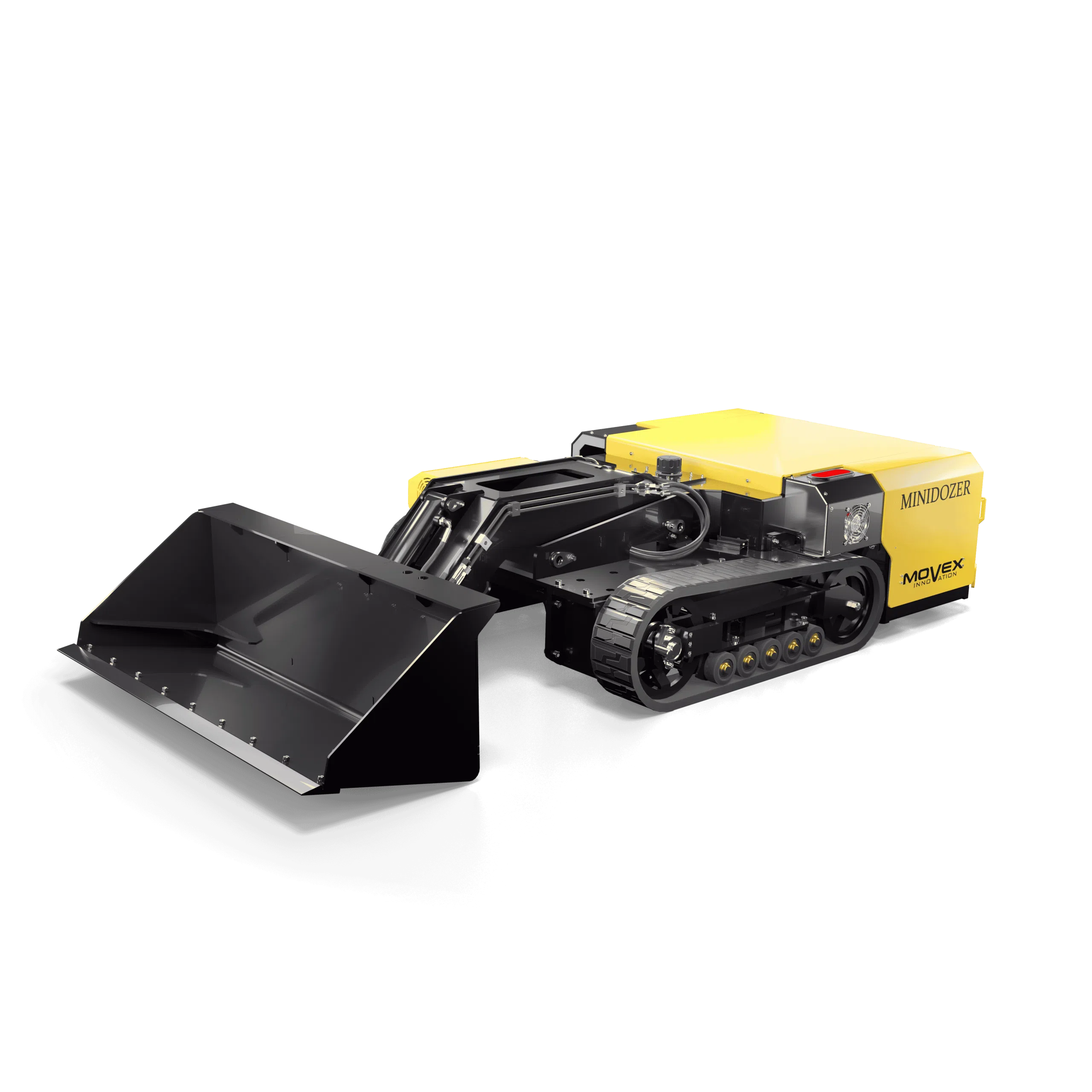

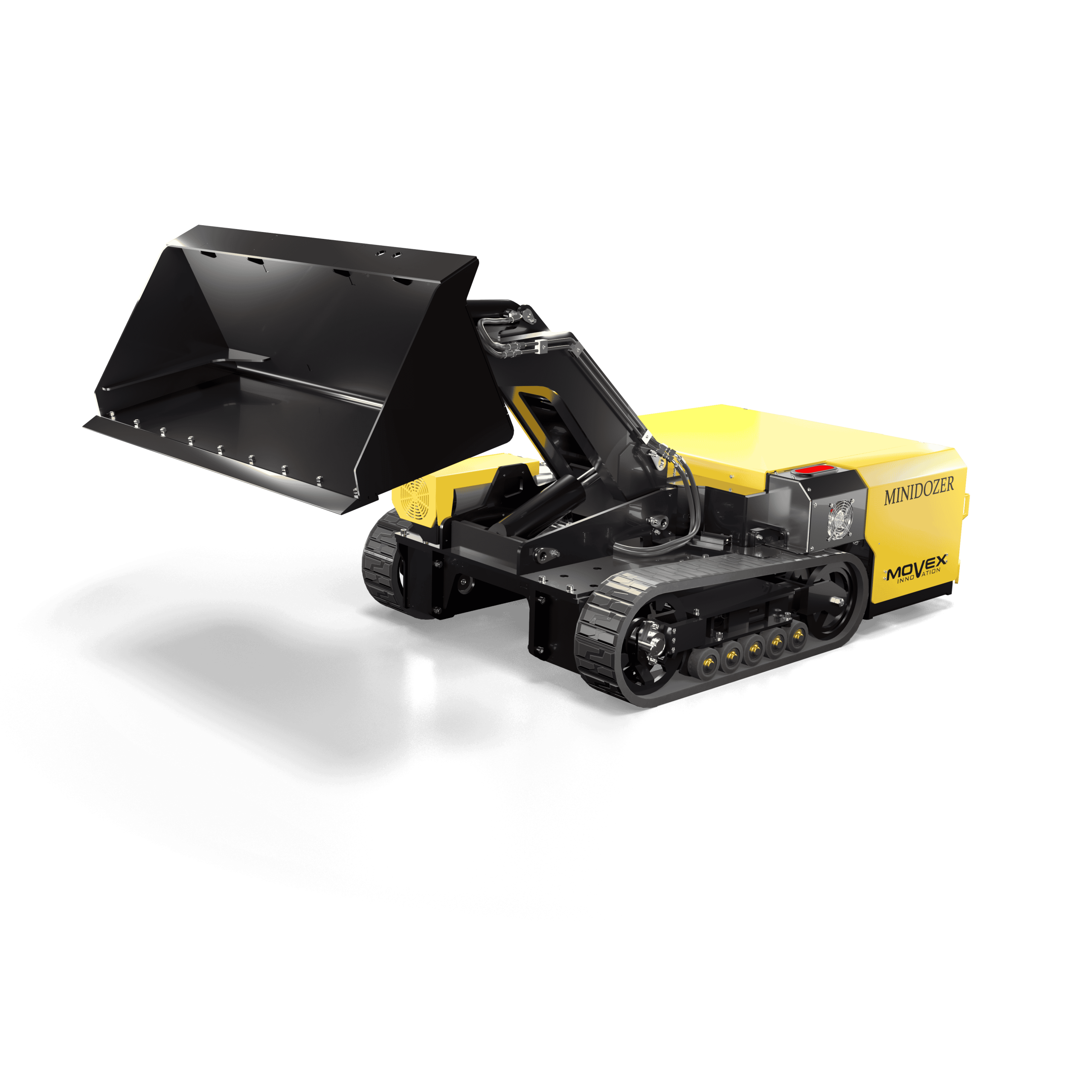

MINIDOZER M-48 | Mini loaders

The M-48 MINIDOZER is an ultra-compact, low-profile, and versatile 48” mini loader that is perfect for working in confined spaces.

Operators can now work safely and efficiently with its remote-controlled, electric, and intelligent features.

It replaces multiple employees, providing high capacity and precise operation control for various applications, from cleaning infrastructure to handling bulk materials.

  • Electric / Zero emissions
  • Ultra-compact
  • Remote controlled
  • Biggest bucket capacity for its size (ratio bucket vs equipment dimension) on the market
  • Safely Load high volume under the lowest structure
  • Remote control reach is up to 300 ft
  • Batteries quickly interchangeable
Mini-Loader Confined Spaces Material-Handling
Mini-Loader M48-Dirt IP67 Submsersible
Mini-Loader Minidozer Infrastructure Cleaning
Mini-Loader Minidozer Box-Culvert Cleaning
Mini-Loader Minidozer Tunnel Cleaning
Mini-Loader Minidozer Mining Conveyor Cleaning

M-48 highlights

Height: 22 in Height: 22 in
Width: 48 in Width: 48 in
Length: 110 in Length: 110 in
Lifting capacity: 1170 lb Lifting capacity: 1170 lb

Typical applications

Box culvert, tunnel and round culvert cleaning
Cleaning operations and extraction of alumina under potline in aluminum smelters
Cleaning of minerals or other bulk materials fallen under conveyors in mines and aggregates quarries
Cleaning operations in recycling centers
Cleaning operations in restricted access environments, such as cement silos and coal storage silos
Cleaning operations in concrete water storage tanks

What if we could help streamline your operations and boost your team’s productivity?

Comparison chart

Imperial
Metric
MINIDOZER M-27

Standard speed

MINIDOZER M-27

Smart technology

MINIDOZER M-48

Standard speed

MINIDOZER M-48

Smart technology

Features

Battery Powered

Wireless remote-controlled

Proportional remote-control

Zero-turn capability

Lifting rings

Interchangeable battery pack

Motion and tilt Alarm

-

Advanced speed control

-

Automatic gradient/speed monitoring

-

Motor brake

-

Can bus communication

-

Upgradable and configurable software

-

Autopilot interface and API

-

IP-65 (splash proof)

-

-

-

-

-

-

-

-

-

Characteristics

Length

112 3/4 in

Width

27 3/4 in

Frame Height (Lowest position)

22 5/16 in

Frame Height (Highest position)

29 5/16 in

Bucket height (maximum)

62 1/2 in

Clearance under bucket (at max height)

37 1/2 in

Weight

2375 lbs

Turning diameter

163 in

112 3/4 in

27 3/4 in

22 5/16 in

29 5/16 in

62 1/2 in

37 1/2 in

2400 lbs

163 in

110 in

50 in

22 in

29 in

59 1/4 in

38 1/2 in

3606 lbs

163 in

110 in

50 in

22 in

29 in

59 1/4 in

38 1/2 in

3612 lbs

163 in

Performance

Lifting Capacity

642 lbs

Bucket Capacity

0.096 yd³

Max speed

66 ft/min

642 lbs

0.096 yd³

200 ft/min

1170 lbs

0.175 yd³

66 ft/min

1170 lbs

0.175 yd³

200 ft/min

Options & Accessories

Camera system

Lighting system

Suction hose attachment

Forklit attachment

Hydraulic scrapper

3-in-1 deployable blade

Round bucket

Enlarged bucket

-

Elongated arm

-

-

-
