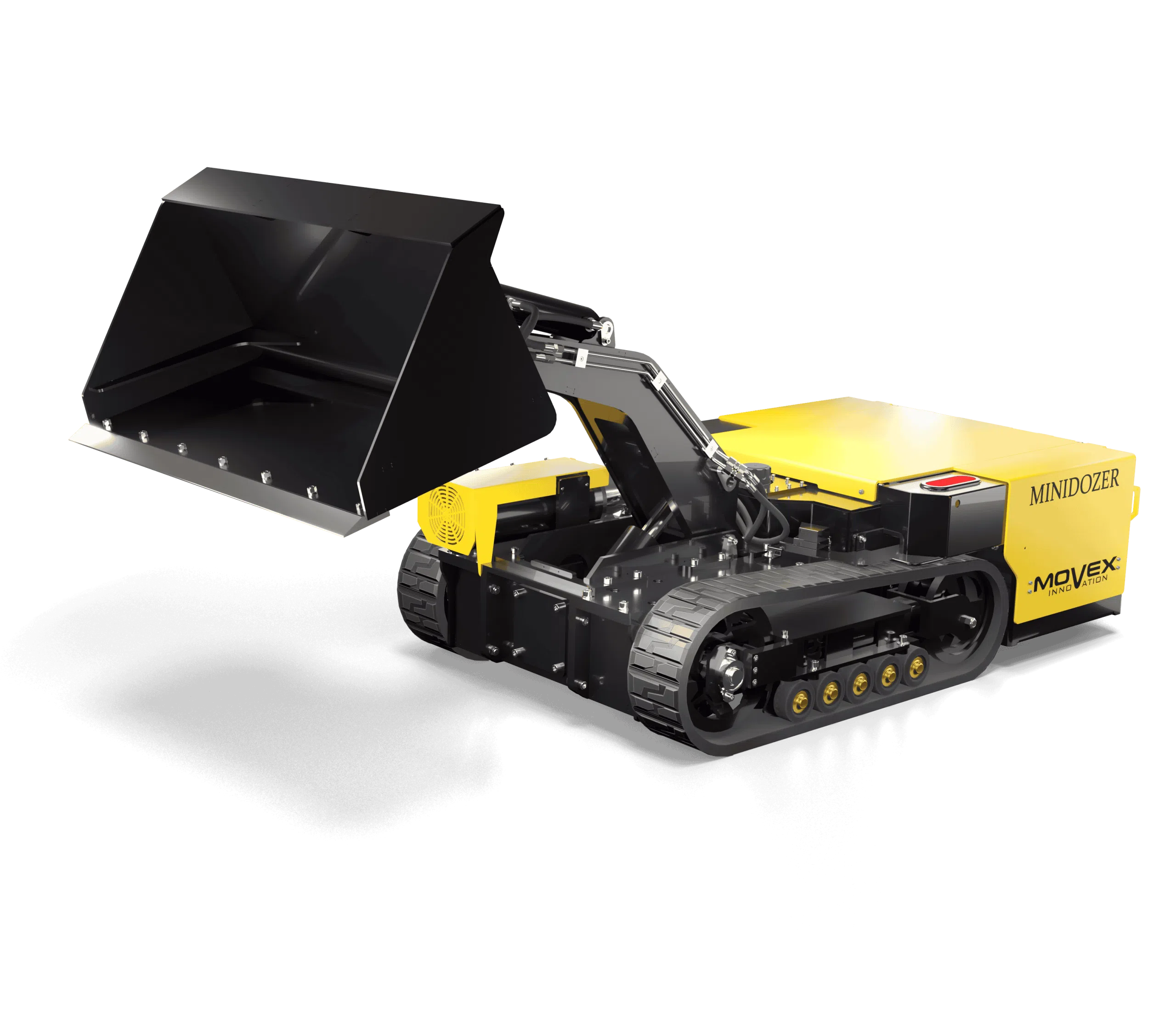

MINIDOZER AL-39 | Mini loaders

Functionality in diverse environments is a defining feature of the AL-39 MINIDOZER mini loader.

From cold temperatures in BC, Canada, at -25°C to the intense heat of the Middle East at 80°C, this equipment is built to perform. Its presence in aluminium smelters globally indicates its reliability in challenging surroundings.

Designed to operate amidst high suspended particle matter, it doesn’t compromise on efficiency. Even electromagnetic environments of over 300 gauss don’t impede its operation.

Despite these capabilities, the equipment remains ultra-compact and boasts a low-profile design.

  • Electric / Zero emissions
  • Ultra-compact
  • Remote controlled
  • All-electric drive system, environmentally friendly and low carbon footprint
  • High energy conversion rate of 80%, minimum heat radiation and noise
  • No fan airborne dust, no diesel fuel and oil leaks, and no toxic NOX gas emissions
  • Improved operator health and safety with a 100 ft.+ remote control range
Mini-loader AL39 Aluminum smelter Potline Cleaning
Mini-loader AL39 Aluminum Smelter Potline Cleaning
Mini-loader AL39 Aluminum Smelter Potline Cleaning

AL-39 highlights

Height: 19 <sup>15</sup>⁄<sub>16</sub> in Height: 19 1516 in
Width : 39 <sup>3</sup>⁄<sub>8</sub> in Width : 39 38 in
Length: 110 in Length: 110 in
Lifting capacity: 960 lb Lifting capacity: 960 lb

Typical applications

Cleaning operations and extraction of alumina under the potlines with a remote-controlled mini loader designed for an electromagnetic field environment.

What if we could help streamline your operations and boost your team’s productivity?

Comparison chart

Imperial
Metric
MINIDOZER AL-27

Standard speed

MINIDOZER AL-39

Standard speed

MINIDOZER AL-48

Standard speed

Features

Electro-magnetic field protections

Battery Powered

Wireless remote-controlled

Proportional remote-control

Zero-turn capability

Lifting rings

Interchangeable battery pack

Characteristics

Length

112 3/4 in

Width

27 3/4 in

Frame Height (Lowest position)

22 5/16 in

Frame Height (Highest position)

29 5/16 in

Bucket height (maximum)

62 1/2 in

Bucket height (maximum)

37 1/2 in

Weight

2375 lbs

Turning diameter

163 in

110 1/8 in

39 3/8 in

19 3/8 in

26 3/8 in

60 in

38 1/2 in

3000 lbs

162 in

110 in

50 in

22 in

29 in

59 1/4 in

38 1/2 in

3606 lbs

163 in

Performance

Lifting Capacity

642 lbs

Bucket Capacity

0.096 yd³

Max speed

66 ft/min

950 lbs

0.142 yd³

66 ft/min

1170 lbs

0.175 yd³

66 ft/min

Options & Accessories

Lighting system

Suction hose attachment

Forklit attachment

Hydraulic scrapper

3-in-1 deployable blade

Enlarged bucket

-

Elongated arm

-

-

-
